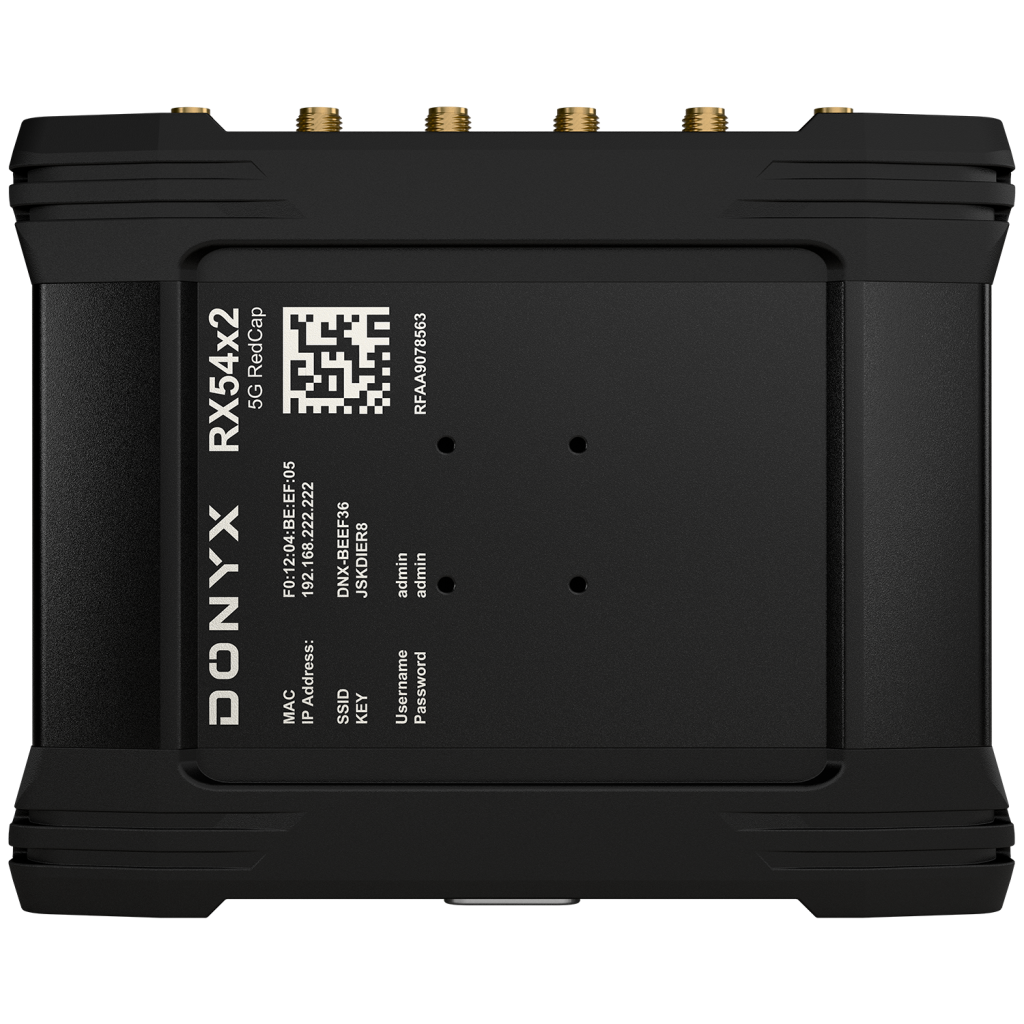

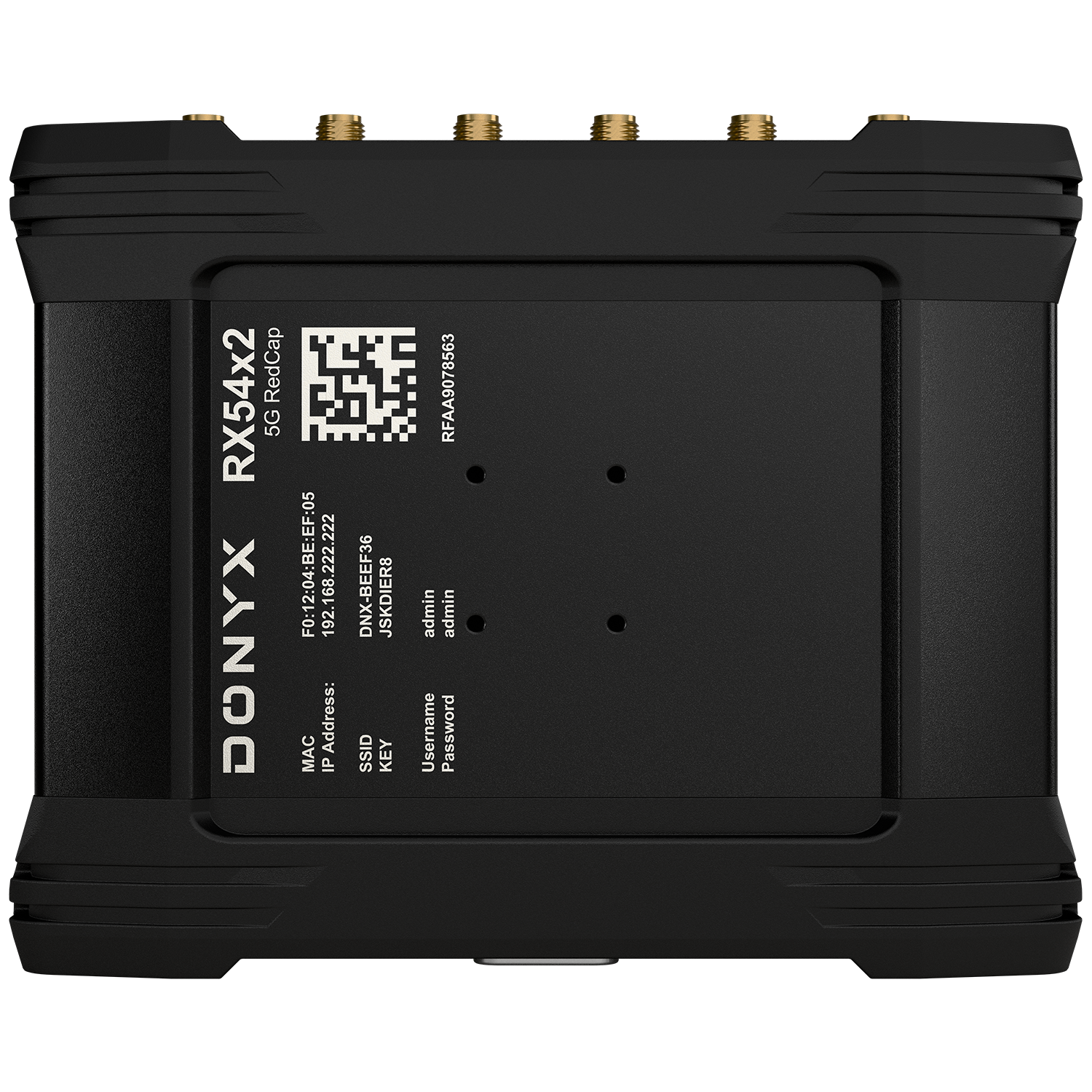

RX54x2 5G RedCap

This industrial-grade 5G router provides reliable cellular connectivity using 5G NR technology. Designed for demanding industrial applications, it combines high-speed data transmission with redundant cellular connections and flexible wired and wireless connectivity options.

Equipped with two 5G modules, the router supports data rates of up to 220 Mbps downlink and 120 Mbps uplink per module. Automatic failover and load balancing help maintain network connectivity and minimize downtime. Dual-SIM functionality provides additional connection redundancy and supports scheduled operation.

The router features four 10/100 Mbps Ethernet ports, RS-232 and RS-485 serial interfaces, and seven configurable GPIO pins for integration with external equipment. An integrated Wi-Fi access point supporting IEEE 802.11b/g/n provides additional wireless connectivity options.

Built on a high-performance processor, the router supports reliable operation and efficient handling of network traffic. Designed for industrial environments, it operates across a wide temperature range of -40°C to +65°C.

The router is well suited for industrial automation, remote monitoring and control, financial terminals, and video surveillance systems. Its redundant cellular connectivity makes it particularly suitable for applications requiring continuous network availability.

The router runs on the dnxOS operating system, which provides advanced networking capabilities, including OpenVPN and IPsec tunneling, data encryption, diagnostic tools, and flexible scripting options. These features enable secure connectivity and adaptable network configurations for industrial and enterprise environments.
